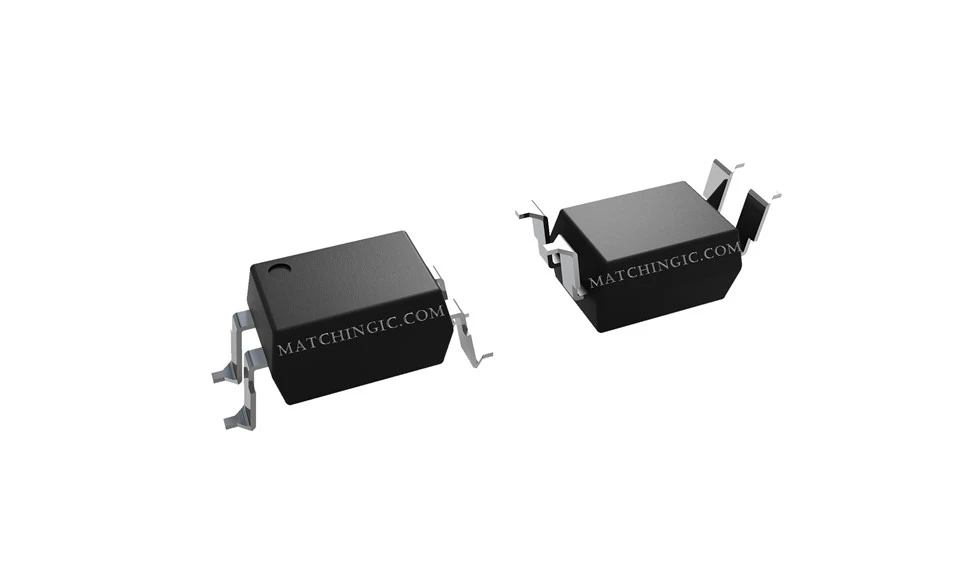

TLP620M(TP1, E
Hauj lwm lawm
Kev tsis
Yam khoom:
|
Mfr Part |
TLP620M (LF1, E |
TLP620M(TP1, E |
TLP620M(TP5, E |
|
Kev piav qhia |
OPTOCOUPLER, PHOTOTRANSISTOR tawm |
OPTOCOUPLER, PHOTOTRANSISTOR tawm |
OPTOCOUPLER, PHOTOTRANSISTOR tawm |
|
Tshuag |
80000 |
80000 |
80000 |
|
Yam khoom |
Active |
Active |
Active |
|
Voltage - Kev rho tawm |
5000 Vrms |
5000 Vrms |
5000 Vrms |
|
Hloov pauv tam sim no (Min) |
50% @ 5mA |
50% @ 5mA |
50% @ 5mA |
|
Hloov pauv tam sim no (Max) |
400% @ 5mA |
400% @ 5mA |
400% @ 5mA |
|
Tig / Tig Sijhawm (Hom) |
3us,3 ua |
3us,3 ua |
3us,3 ua |
|
Hom tswv yim |
AC, DC |
AC, DC |
AC, DC |
|
Hom tso zis |
Transistor AC / DC |
Transistor AC / DC |
Transistor AC / DC |
|
Voltage - Tso zis (Max) |
55V |
55V |
55V |
|
Tam sim no - Tso zis / Channel |
50mA ua |
50mA ua |
50mA ua |
|
Voltage - Forward (Vf) (Typ) |
1.15V |
1.15V |
1.15V |
|
Tam sim no - DC Forward (Yog) (Max) |
50 mA |
50 mA |
50 mA |
|
Ua haujlwm kub |
-55-C ~ 100-C |
-55-C ~ 100-C |
-55-C ~ 100-C |
|
Pob / Case |
SMD4 (7.62 hli) |
SMD4 (7.62 hli) |
SMD4 (7.62 hli) |
|
Pob |
Daim kab xev & Reel (TR) |
Daim kab xev & Reel (TR) |
Daim kab xev & Reel (TR) |
Daim ntawv thovs:
• Programmable Logic Controllers (PLCs)
• I/O Interface Boards
Kev piav qhia dav dav:
TLP620M yog qhov tsawg AC input hom phototransistor coupler uas muaj cov phototransistor optically txuas mus rau ob antiparallel infrared emitting diode hauv 4pin DIP.
TLP620M tau lees paub qhov kev sib cais siab siab (5000 Vrms) thiab qhov kub ua haujlwm dav (-55 txog 125 degree ). Txij li thaum TLP620M txuas nrog antiparallel los ntawm ob lub LEDs, nws tsim nyog rau AC tam sim no cov tswv yim. TLP620MF yog cov hlau lead ua rau qhov ntev creepage mounting ntawm TLP620M.
