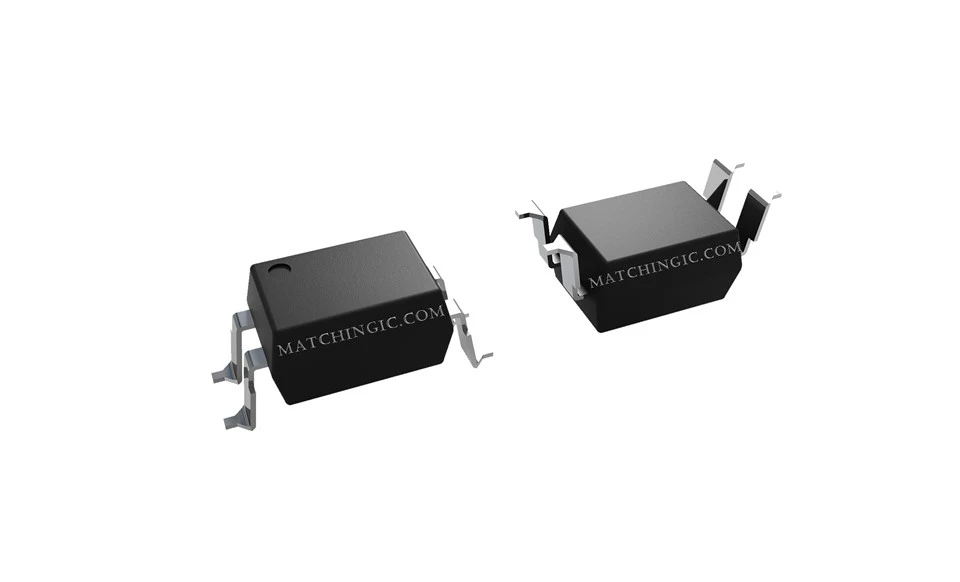

H11A817CSD

Yam khoom: Daim ntawv thov s: H11AA814 Series • AC kab saib • Tsis paub polarity DC sensor • Xov tooj kab interface H11A617 thiab H11A817 Series • Fais fab mov regulators • Digital logic inputs • Microprocessor inputs General Description: H11AA814 Series ...

Xa kev nug

Hauj lwm lawm

Kev tsis

Yam khoom:

Mfr Part	H11A817C3S	H11A817C3SD	H11A817CFD	H11A817CS	H11A817CSD
Kev piav qhia	OPTOCOUPLER, PHOTOTRANSISTOR tawm	OPTOCOUPLER, PHOTOTRANSISTOR tawm	OPTOCOUPLER, PHOTOTRANSISTOR tawm	OPTOCOUPLER, PHOTOTRANSISTOR tawm	OPTOCOUPLER, PHOTOTRANSISTOR tawm
Tshuag	80000	80000	80000	80000	80000
Yam khoom	Active	Active	Active	Active	Active
Voltage - Kev rho tawm	5000 Vrms	5000 Vrms	5000 Vrms	5000 Vrms	5000 Vrms
Hloov pauv tam sim no (Min)	200% @ 5mA	200% @ 5mA	200% @ 5mA	200% @ 5mA	200% @ 5mA
Hloov pauv tam sim no (Max)	400% @ 5mA	400% @ 5mA	400% @ 5mA	400% @ 5mA	400% @ 5mA
Tig / Tig Sijhawm (Hom)	-	-	-	-	-
Hom tswv yim	DC	DC	DC	DC	DC
Hom tso zis	Transistor DC	Transistor DC	Transistor DC	Transistor DC	Transistor DC
Voltage - Tso zis (Max)	80V	80V	80V	80V	80V
Tam sim no - Tso zis / Channel	50mA ua	50mA ua	50mA ua	50mA ua	50mA ua
Voltage - Forward (Vf) (Typ)	1.2V	1.2V	1.2V	1.2V	1.2V
Tam sim no - DC Forward (Yog) (Max)	-	-	-	-	-
Ua haujlwm kub	-55-C ~ 110-C	-55-C ~ 110-C	-55-C ~ 110-C	-55-C ~ 110-C	-55-C ~ 110-C
Pob / Case	SMD4 (7.62 hli)	SMD4 (7.62 hli)	SMD4 (7.62 hli)	SMD4 (7.62 hli)	SMD4 (7.62 hli)
Pob	Daim kab xev & Reel (TR)	Daim kab xev & Reel (TR)	Daim kab xev & Reel (TR)	Daim kab xev & Reel (TR)	Daim kab xev & Reel (TR)

Daim ntawv thovs:

H11AA814 Series

• AC kab saib xyuas

• Tsis paub polarity DC sensor

• Xov tooj kab interface

H11A617 thiab H11A817 Series

• Fais fab mov regulators

• Digital logic inputs

• Microprocessor inputs

Kev piav qhia dav dav:

H11AA814 Series muaj ob lub gallium arsenide infrared emitting diodes, kev cob cog rua inverse parallel, tsav ib silicon phototransistor nyob rau hauv ib tug 4-pin dual nyob rau hauv-kab pob.

H11A617 thiab H11A817 Series muaj cov gallium arsenide infrared emitting diode tsav lub silicon phototransistor nyob rau hauv ib tug 4-pin dual nyob rau hauv-kab pob.
