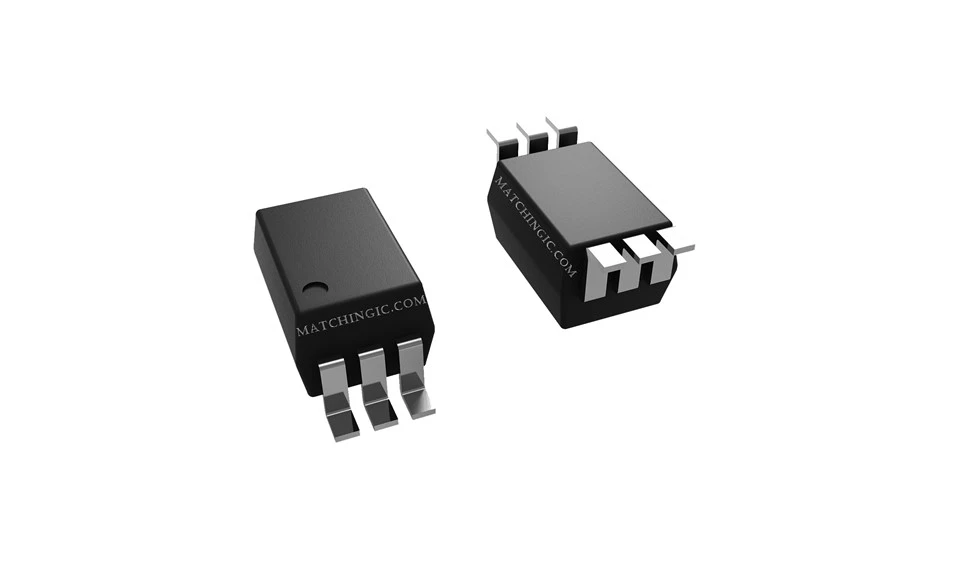

TLP708F(TP,F) OPTOISO 5KV 1CH GATE DVR 6SDIP
Hauj lwm lawm
Kev tsis
Yam khoom:
|
Mfr Part |
TLP708F |
TLP708F(D4-TP,F) |
TLP708F(TP,F) |
|
Tshuag |
40000 |
40000 |
40000 |
|
Yam khoom |
Active |
Active |
Active |
|
Tus naj npawb ntawm Channel |
1 |
1 |
1 |
|
Voltage - Kev rho tawm |
5000 Vrms |
5000 Vrms |
5000 Vrms |
|
Hom Hom Kev Tiv Thaiv Kev Tiv Thaiv Kab Mob (Min) |
15 kV/μs |
15 kV/μs |
15 kV/μs |
|
Hom tswv yim |
DC |
DC |
DC |
|
Hom tso zis |
Totem Pole |
Totem Pole |
Totem Pole |
|
Tam sim no - Tso zis / Channel |
10mA ua |
10mA ua |
10mA ua |
|
Cov ntaub ntawv tus nqi |
15mbd ib |
15mbd ib |
15mbd ib |
|
Propagation Delay tpLH / tpHL (Max) |
75n, 75 ib |
75n, 75 ib |
75n, 75 ib |
|
Voltage - Forward (Vf) (Typ) |
1.65V |
1.65V |
1.65V |
|
Tam sim no - DC Forward (Yog) (Max) |
20mA ua |
20mA ua |
20mA ua |
|
Voltage - Khoom siv |
4.5 V ~ 5.5 V |
4.5 V ~ 5.5 V |
4.5 V ~ 5.5 V |
|
Ua haujlwm kub |
-40 degree ~ 100 degree |
-40 degree ~ 100 degree |
-40 degree ~ 100 degree |
|
Pob / Case |
SDIP6 (6.8x1.27) |
SDIP6 (6.8x1.27) |
SDIP6 (6.8x1.27) |
|
Pob |
Daim kab xev & Reel (TR) |
Daim kab xev & Reel (TR) |
Daim kab xev & Reel (TR) |
Daim ntawv thovs:
• Hoobkas Automation (FA)
• Cov Khoom Siv Hluav Taws Xob Hauv Tsev
• Ua haujlwm ntawm qhov kub thiab txias mus txog 125 degree
Kev piav qhia dav dav:
Lub TLP708 muaj ib tug infrared emitting diode thiab ib tug integrated highgain, high-ceev photodetector. Lub TLP708 nyob hauv SDIP6 pob.
Piv nrog rau tus qauv DIP8 pob, TLP708 yog qhov me me, tsis tau los nrog cov qauv kev nyab xeeb thoob ntiaj teb raws li kev sib cais cais. Yog li ntawd, nws muaj peev xwm txo tau qhov mounting hneev taw rau cov ntawv thov uas xav tau cov ntawv pov thawj rau cov qauv kev nyab xeeb.
Lub photodetector muaj qhov qhib-collector tso zis theem, thiab sab hauv Faraday ntaub thaiv npog uas muab kev tiv thaiv kev tiv thaiv ib puag ncig ntawm ± 15 kV / μs. Raws li TLP708 tseem tuaj yeem ua haujlwm txog li 125 degree, nws yog qhov tsim nyog rau kev siv hauv cov ntawv thov xws li cov khoom siv hauv tsev uas yuav tsum tau ua haujlwm hauv qhov kub thiab txias.
TLP708F yog qhov ntev creepage nrug thiab clearance deb hom.
