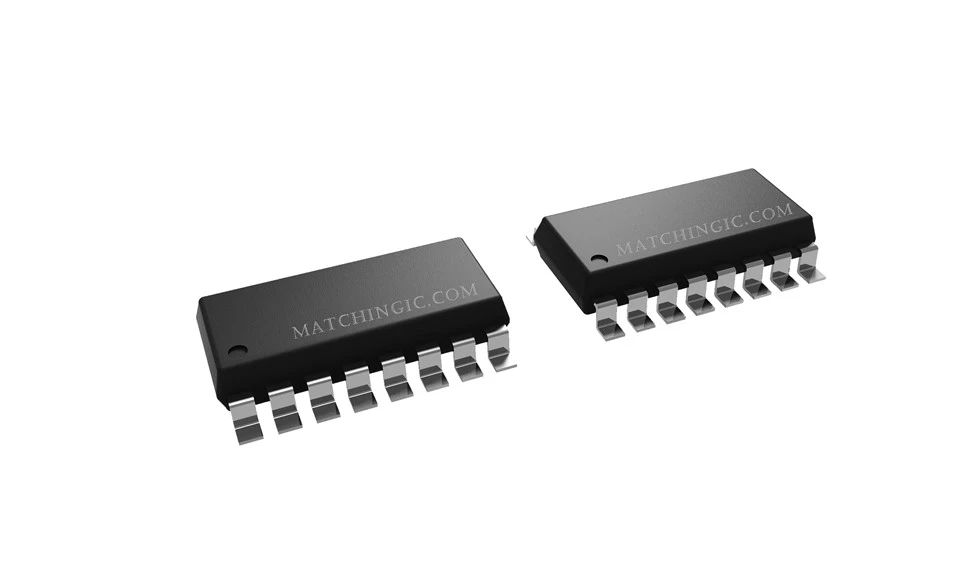

SI8388P-IB

Yam khoom: Daim ntaub ntawv: • Programmable logic controllers • Muaj cov ntaub ntawv tau txais • Distributed tswj systems • CNC machine • I/O modules • Motion control systems Safety Regulatory Approvals: • UL 1577 lees • Mus txog 2500 VRMS rau ib ...

Xa kev nug

Hauj lwm lawm

Kev tsis

Yam khoom:

Mfr Part	SI8388P-IU	SI8388P-IB
Kev piav qhia	Digital Isolator	Digital Isolator
Tshuag	30000	30000
Yam khoom	Active	Active
Technology	Capacitive Coupling	Capacitive Coupling
Hom	Lub Hom Phiaj	Lub Hom Phiaj
Voltage-Kev rho tawm	2.5 kwm	2.5 kwm
Cov ntaub ntawv tus nqi	2 Mbps ib	2 Mbps ib
Lub zog cais	Tsis muaj	Tsis muaj
Tus naj npawb ntawm Channel	8	8
Inputs - Sab 1 / Sab 2	8/0	8/0
Hom Channel	Unidirectional	Unidirectional
Hom Hom Kev Tiv Thaiv Kev Tiv Thaiv Kab Mob (Min)	300kV/µs	300kV/µs
Propagation Delay tpLH & tpHL (Max)	-	-
Pulse Width Distortion (Max)	-	-
Nce / Caij Nplooj Ntoos Hlav (Hom)	3.9, 3, 7 nr	3.9, 3, 7 nr
Voltage - Khoom siv	2.25 V ~ 5.5 V	2.25 V ~ 5.5 V
Ua haujlwm kub	-40 degree ~ 125 degree	-40 degree ~ 125 degree
Pob / Case	QSOP16(3.9x0.64)6.0	QSOP16(3.9x0.64)6.0
Pob	Daim kab xev & Reel (TR)	Daim kab xev & Reel (TR)

Daim ntawv thov:

• Programmable logic controllers

• Muaj cov ntaub ntawv tau txais

• Distributed control systems

• CNC tshuab

• I/O modules

• Kev tswj hwm lub zog

Kev Tswj Xyuas Kev Nyab Xeeb Kev Pom Zoo:

• UL 1577 lees paub

• Txog li 2500 VRMS rau ib feeb

• CSA tivthaiv ceeb toom 5A pom zoo

• IEC 60950-1

• IEC 62368-1

• VDE ntawv pov thawj ua raws

• VDE 0884-10

• CQC daim ntawv pov thawj pom zoo

• GB4943.1

General Description:

Bipolar Digital Field Inputs rau PLCs thiab Industrial I/O Modules

Si838x muab yim lub tswv yim zoo tagnrho rau 24 V cov logic feem ntau siv rau kev lag luam. Cov channel no tuaj yeem ua dab dej lossis qhov chaw tam sim no thiab muaj kev sib koom ua ke kev nyab xeeb nyob ib leeg. Ua ke nrog ob peb yam khoom sab nraud, qhov no muab kev ua raws li IEC 61131-2 hloov hom 1, 2, lossis 3. Cov kev tawm tswv yim yog raws li Skyworks 'hauv av-breaking CMOS raws li LED emulator thev naus laus zis uas ua rau muaj peev xwm bipolar (dej. lossis cov khoom siv nkag) tsis muaj VDD xav tau ntawm sab teb. Cov zis interface los ntawm Si838x ntaus ntawv tso cai rau kev ua haujlwm qis zog nrog 2.25 V ua raws. Cov khoom no siv Skyworks 'proprietary CMOS-raws li kev sib cais tshuab, txhawb nqa txog li 2.5 kVRMS tiv taus hluav taws xob. Cov tshuab no ua rau siab CMTI (txog 300 kV / μs), txo qis kev nthuav tawm qeeb thiab cov channel skew, txo qhov sib txawv ntawm qhov kub thiab qhov muaj hnub nyoog, thiab nruj dua ib feem ntawm qhov sib txuam. Si838x muab kev pabcuam ntev dua thiab muaj kev ntseeg siab ntau dua piv rau opto-coupled input solutions.

Cov kev xaiv khoom muaj xws li cov khoom sib txuas lossis cov khoom sib txuas. Parallel outputs tuaj yeem yuav nrog built-in, low-pass lim rau kev txhim kho suab nrov tiv thaiv, txo kev tsim complexity thiab nqi. Cascading tag nrho ntawm 128 raws (16x Si838x) nrog ib qho MCU interface yog ua tau nrog Si8380S serial tso zis kev xaiv. Si8380S tseem qhib lub peev xwm los teeb tsa txhua qhov channel nrog tus cwj pwm lim dej tshwj xeeb.
