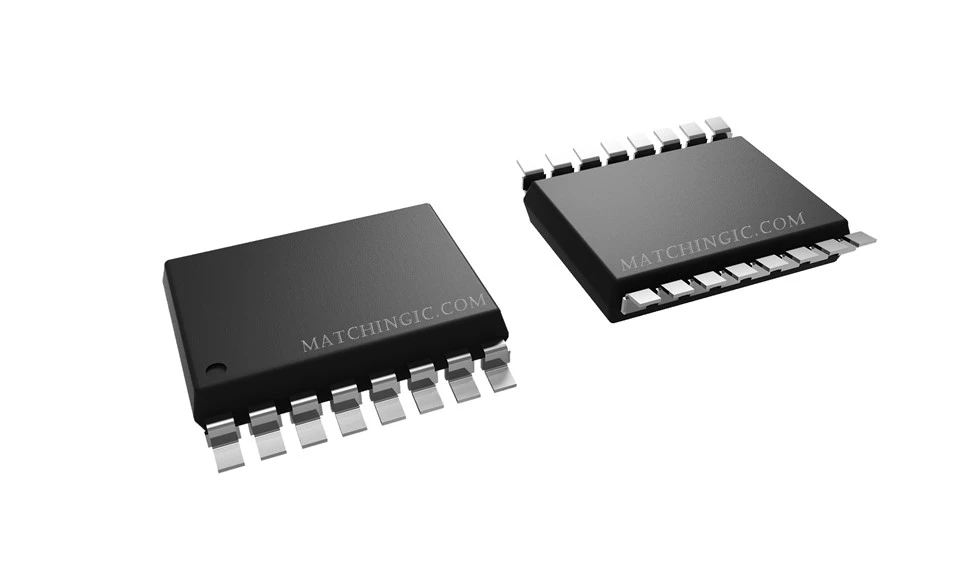

ADUM231E1BRWZ-RL
Hauj lwm lawm
Kev tsis
|
Mfr Part |
TIAB SA 231E1BRWZ |
ADUM231E1BRWZ-RL |
|
Kev piav qhia |
Digital Isolator |
Digital Isolator |
|
Tshuag |
30000 |
30000 |
|
Yam khoom |
Active |
Active |
|
Technology |
Capacitive Coupling |
Capacitive Coupling |
|
Hom |
Lub Hom Phiaj |
Lub Hom Phiaj |
|
Voltage-Kev rho tawm |
5k vwm |
5k vwm |
|
Cov ntaub ntawv tus nqi |
150 Mbps |
150 Mbps |
|
Lub zog cais |
Tsis muaj |
Tsis muaj |
|
Tus naj npawb ntawm Channel |
3 |
3 |
|
Inputs - Sab 1 / Sab 2 |
2/1 |
2/1 |
|
Hom Channel |
Unidirectional |
Unidirectional |
|
Hom Hom Kev Tiv Thaiv Kev Tiv Thaiv Kab Mob (Min) |
75 kV/µs |
75 kV/µs |
|
Propagation Delay tpLH & tpHL (Max) |
13, 13 Nws |
13, 13 Nws |
|
Pulse Width Distortion (Max) |
3ns ib |
3ns ib |
|
Nce / Caij Nplooj Ntoos Hlav (Hom) |
2, 5, 2, 5 nr |
2, 5, 2, 5 nr |
|
Voltage - Khoom siv |
1.7 V ~ 5.5 V |
1.7 V ~ 5.5 V |
|
Ua haujlwm kub |
-40 degree ~ 125 degree |
-40 degree ~ 125 degree |
|
Pob / Case |
WSOP16(7.5x1.27) 10.5 |
WSOP16(7.5x1.27) 10.5 |
|
Pob |
Daim kab xev & Reel (TR) |
Daim kab xev & Reel (TR) |
GENERAL DESCRIPTION:
AduM230D/ADuM230E/ADuM231D/ADuM231E1 yog triple-channel digital isolators raws li Analog Devices, Inc., iCoupler® thev naus laus zis. Ua ke nrog kev kub ceev, ntxiv cov hlau-oxide semiconductor (CMOS) thiab monolithic cua core transformer technology, cov khoom sib cais no muab cov yam ntxwv ua tau zoo tshaj plaws rau lwm txoj hauv kev xws li optocoupler li thiab lwm yam kev sib txuas. Qhov siab tshaj plaws propagation ncua yog 13 ns nrog lub mem tes dav distortion ntawm tsawg dua 3 ns ntawm 5 V ua haujlwm. Kev sib txuam channel yog nruj ntawm 3.0 ns siab tshaj plaws.
AduM230D/ADuM230E/ADuM231D/ADuM231E cov ntaub ntawv raws yog ywj siab thiab muaj nyob rau hauv ntau yam configurations nrog ib tug withstand voltage ntsuas ntawm 5.0 kV rms (saib daim ntawv qhia Ordering). Cov khoom siv ua haujlwm nrog cov khoom siv hluav taws xob ntawm ob sab xws li ntawm 1.8 V txog 5 V, muab kev sib raug zoo nrog cov tshuab hluav taws xob qis dua nrog rau kev ua kom muaj zog txhais lus ua haujlwm thoob plaws qhov kev sib cais.
Tsis zoo li lwm qhov kev xaiv optocoupler, dc qhov tseeb yog ua kom ntseeg tau thaum tsis muaj kev hloov pauv ntawm cov tswv yim. Muaj ob qhov kev xaiv tsis raug-kev nyab xeeb sib txawv, los ntawm qhov kev hloov pauv hloov mus rau lub xeev tau txiav txim siab thaum tsis siv cov khoom siv hluav taws xob lossis cov khoom siv tsis siv.
Cim npe nrov: Tuam Tshoj adum231e1brwz-rl, Tuam Tshoj adum231e1brwz-rl manufacturers, lwm tus neeg
