ISL 32743EIBZ-T7A

Txawm hais tias koj tab tom ua haujlwm ntawm kev lag luam automation, tsheb, lossis lwm yam ntaub ntawv-sensitive daim ntawv thov, ISL32743EIBZ-T7A yog koj tus khub ntseeg siab rau kev ua tiav.

Xa kev nug

Hauj lwm lawm

Kev tsis

ISL32743EIBZ-T7A isolation interface IC yog qhov kev kub ceev, muaj zog, thiab txhim khu kev qha tsim los rau kev sib txuas lus cov ntaub ntawv zoo. Nrog rau 40Mbps cov ntaub ntawv tus nqi, 2.5kVRMS kev rho tawm, 3.3V tsheb npav sib raug zoo, thiab kev nthuav tawm tsawg kawg, nws ua kom cov ntaub ntawv xa mus sai thiab meej. Qhov IC no muaj kev tiv thaiv kab mob sib kis tau zoo, 16.5kV ESD tiv thaiv, thiab tsis tshua muaj EMC cuam tshuam, txhim kho cov ntaub ntawv kev ncaj ncees thiab kev ntseeg tau ntawm lub cev. Nws qhov kub ntau, ua raws li cov qauv kev lag luam, thiab daim ntawv cog lus ua kom nws muaj ntau yam kev xaiv rau ntau yam kev siv, suav nrog kev lag luam automation thiab automotive systems. Cov kws tsim qauv thiab cov kws tsim qauv tuaj yeem tso siab rau ISL32743EIBZ-T7A kom xa cov kev ua tau zoo thiab kev nyab xeeb hauv kev xav tau ib puag ncig.

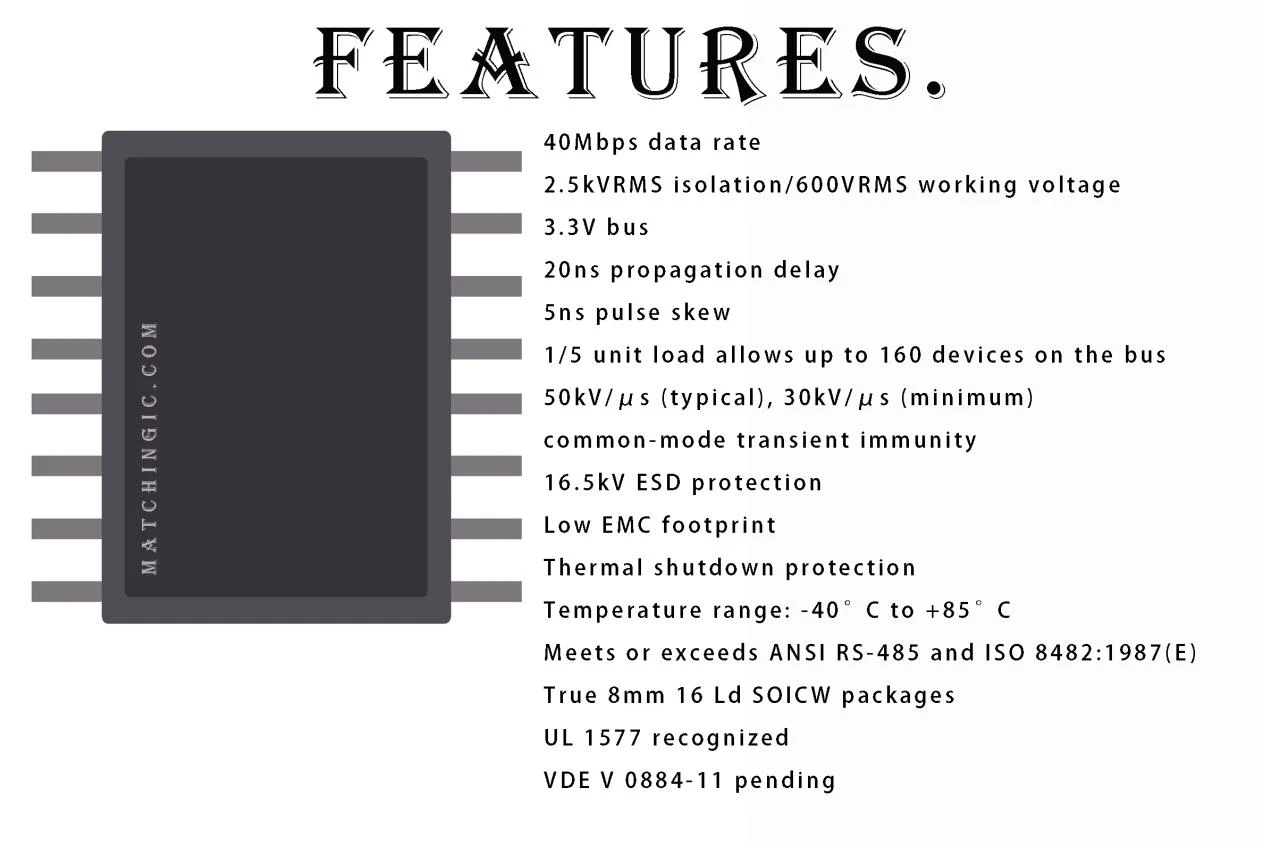

product-1263-846

Yam khoom:

Mfr Part	ISL 32743 EIB	ISL 32743 EIBZ-T	ISL 32743EIBZ-T7A
Kev piav qhia	Isolated interface ICs	Isolated interface ICs	Isolated interface ICs
Tshuag	30000	30000	30000
Yam khoom	Active	Active	Active
Technology	Capacitive Coupling	Capacitive Coupling	Capacitive Coupling
Hom	RS485/422 Isolator	RS485/422 Isolator	RS485/422 Isolator
Lub zog cais	Tsis muaj	Tsis muaj	Tsis muaj
Tus naj npawb ntawm Channel	-	-	-
Inputs - Sab 1 / Sab 2	1/1	1/1	1/1
Hom Channel	Ib nrab	Ib nrab	Ib nrab
Voltage-Kev rho tawm	6k vwm	6k vwm	6k vwm
Hom Hom Kev Tiv Thaiv Kev Tiv Thaiv Kab Mob (Min)	50kV/µs	50kV/µs	50kV/µs
Cov ntaub ntawv tus nqi	40 Mbps	40 Mbps	40 Mbps
Pulse Width Distortion (Max)	-	-	-
Nce / Caij Nplooj Ntoos Hlav (Hom)	-	-	-
Voltage - Khoom siv	3V ~ 3.6V,5.5V	3V ~ 3.6V,5.5V	3V ~ 5.5V
Ua haujlwm kub	-40 degree ~ 85 degree (TA)	-40 degree ~ 85 degree (TA)	-40 degree ~ 85 degree
Pob / Case	SIB 16	SIB 16	SIB 16
Pob	Daim kab xev & Reel (TR)	Daim kab xev & Reel (TR)	Daim kab xev & Reel (TR)

Daim ntawv thov:

· Hoobkas automation

· Tsim kev tswj hwm ib puag ncig

· Txheej txheem tswj tes hauj lwm

· Cov cuab yeej siv tau raws li IEC 61010-1 Tsab 3

Nqe lus piav qhia:

ISL32743E yog ib qho galvanically cais cov tsheb npav ceev sib txawv, tsim los rau cov ntaub ntawv sib txuas lus ntawm cov kab sib txuas. Cov cuab yeej siv Giant Magnetoresistance (GMR) raws li nws cov cuab yeej cais tawm.

Ib feem yog muaj nyob rau hauv 16 Ld SOICW pob muab qhov tseeb 8 hli creepage nrug.

Ib qho tshwj xeeb ceramic/polymer composite barrier muab kev sib cais zoo heev thiab 44000 xyoo ntawm kev cuam tshuam lub neej.

Cov cuab yeej siv tau nrog 3V thiab 5V cov khoom siv nkag, tso cai rau kev sib cuam tshuam rau tus qauv microcontrollers yam tsis muaj kev hloov pauv ntxiv.

Cov kev txwv tam sim no thiab thermal kaw cov yam ntxwv tiv thaiv cov zis tawm luv luv thiab kev sib tw tsheb npav uas yuav ua rau muaj hluav taws xob ntau dhau. Cov khoom siv tau txais yog qhov tsim tsis muaj kev nyab xeeb tag nrho, kom ntseeg tau tias lub logic siab R-tso tawm yog A / B ntab lossis luv.

Cim npe nrov: isl32743eibz-t7a, Tuam Tshoj isl32743eibz-t7a manufacturers, lwm tus neeg
